Shear tool shaft 3/16 adapter

Price range: € 145,00 through € 165,00

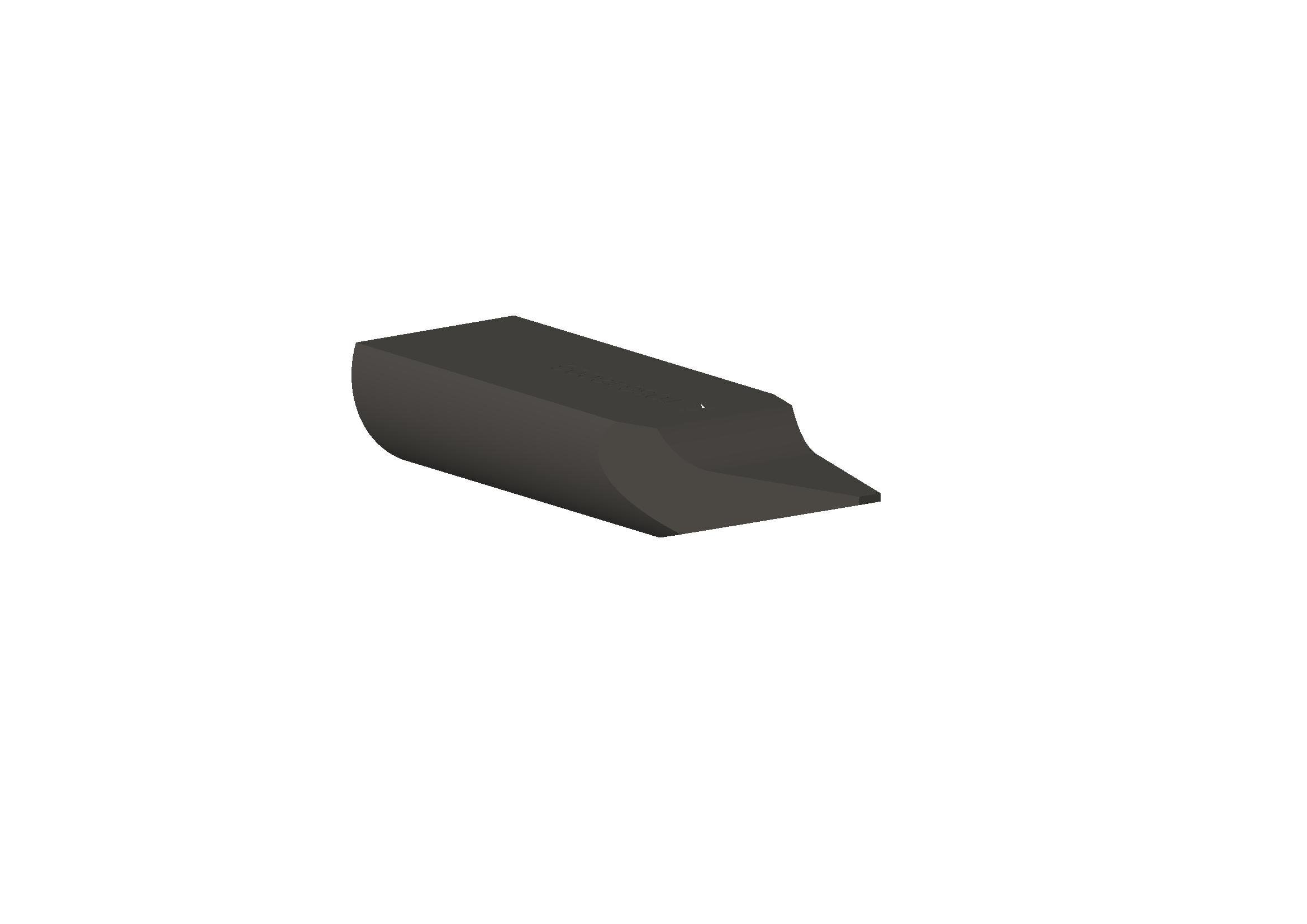

Shear tool with a 3/16″ shaft diameter, compatible with the 1 kgf shear sensor interface. Available in standard widths and back relief variants.
- Sigma compatible

Shear tool

Clear

SKU: TOS648010 Category: Sigma shear tools Tag: Sigma

Description

Shear tools are suitable for many different applications. We define standard shear tools by their shaft diameter, shaft length, and the width and depth of the tooltip. Besides the standard tools, we design custom solutions to fulfill all test requirements.

Alignment shear tool

Which shear tool do I need?

The minimum tool width is the same as the sample deformation. A slightly wider tool is acceptable if you consider the tool alignment, adjacent bonds, and other parts of the sample.

Tools are made from hardened tool steel or tungsten carbide.
- Hardened tool steel is both hard and tough and typically ideal for high force application
- Tungsten carbide is extremely hard to resist wear but brittle and can have a very sharp tip for small geometries
Make sure you choose the tool which is compatible with your bond tester: Sigma or Classic

Additional information

Weight	0,0005 g
Compatible with	Classic, Sigma
Shear tool	1 mm, 1,5mm, 2 mm, 3 mm, 400 µm, 600 µm, 800 µm, 50 µm Back Relief Width, 75 µm Back Relief Width, 100 µm Back Relief Width, 125 µm Back Relief Width, 200 µm Back Relief Width, 325 µm Back Relief Width, 500 µm Back Relief Width

Article numbers

400 µm

TOS648004

600 µm

TOS648006

800 µm

TOS648008

1 mm

TOS648010

1,5 mm

TOS648015

2 mm

TOS648020

3 mm

TOS648030

50 µm – back relief

TOS626050

75 µm – back relief

TOS626075

100 µm – back relief

TOS626100

125 µm – back relief

TOS626125

200 µm – back relief

TOS626200

325 µm – back relief

TOS626325

500 µm – back relief

TOS626500
