Wire hook standard

Price range: € 90,00 through € 110,00

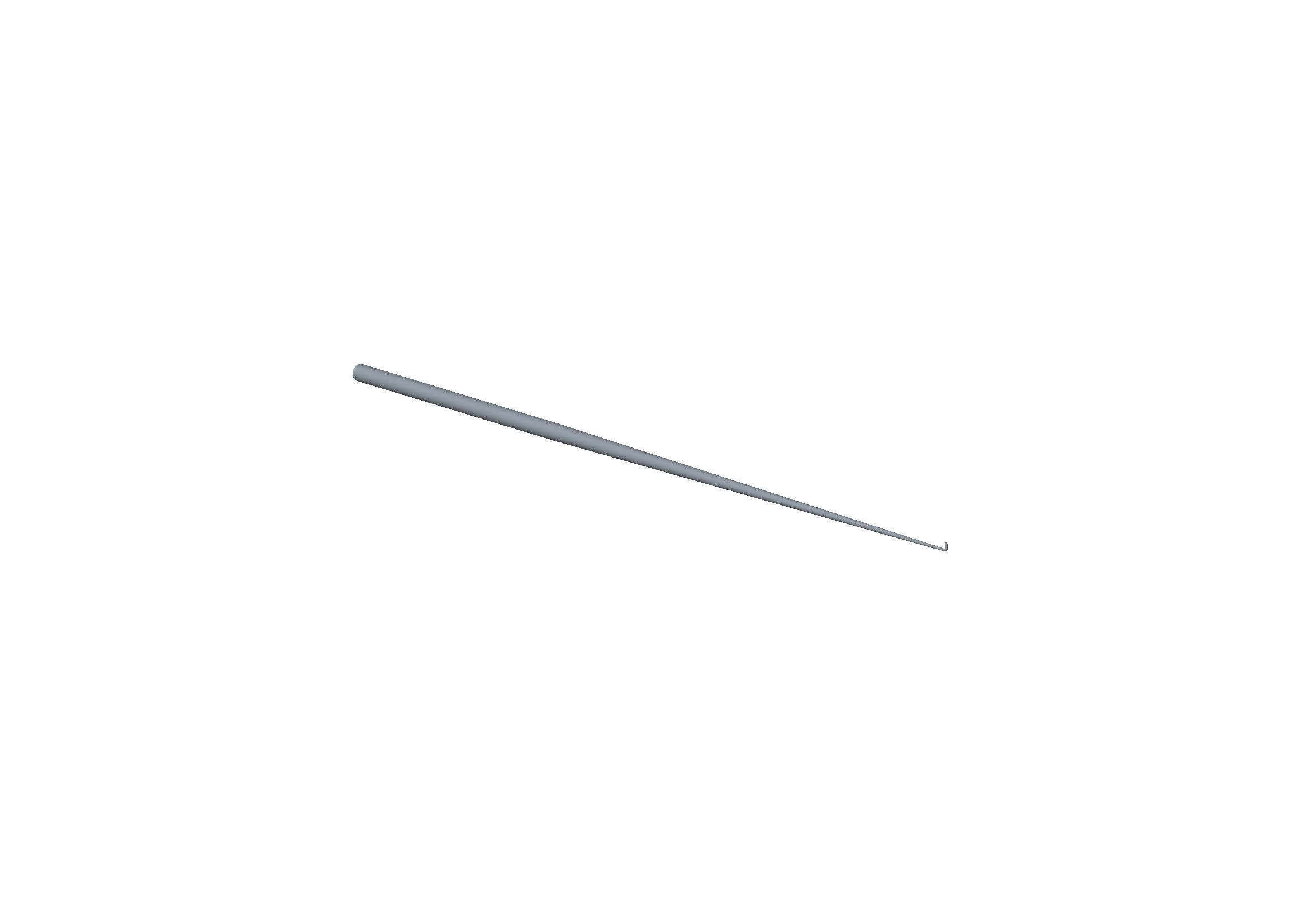

Standard wire hook for wire and ribbon pull tests, with a 30 mm hook length for easy alignment. Available in foot diameters from 25 µm to 1200 µm and shaft diameters of 0,5 mm or 1,2 mm.

Sigma and Classic compatible

Foot diameter

Foot length

Hook length

Shaft diameter

Clear

SKU: TOP100050 Category: Sigma wire hooks Tag: Sigma

Description

You can use hooks for wire or ribbon pull, but they are also usable for any application where a hook is a suitable means of applying the test load.

Standard hooks are made from bent round wire and defined by their foot diameter, foot length, and shaft diameter. Our long hook length of 30 mm enables easy alignment to the test point where other components restrict access to your test site. The hook’s angle is typically 85° to pull the wire into the hook, so it does not slip off. Besides the standard tools, we design custom solutions to fulfill all test requirements.

Which hook do I need?

For most applications, the wire hook diameter should be around 3 times the wire diameter or ribbon thickness to reduce stress and to avoid cutting into it.
Fine pitch applications require a shorter foot length to prevent pulling multiple wires at once.
Applications with larger distances between wires, or wires bonded in irregular patterns, are appropriate for longer foot lengths that provide more tolerance for any variability in wire position in manual and automated testing. Extremely low loop heights (30 μm or less) may require special tooling
Make sure you choose the tool which is compatible with your bond tester: Sigma or Classic

Additional information

Weight	0,0005 g
Compatible with	Classic, Sigma
Foot diameter	100 µm, 1000 µm, 1100 µm, 1200 µm, 150 µm, 200 µm, 25 µm, 250 µm, 300 µm, 400 µm, 50 µm, 500 µm, 600 µm, 700 µm, 75 µm, 800 µm, 900 µm
Foot length	100 µm, 1200 µm, 150 µm, 1500 µm, 1800 µm, 200 µm, 2100 µm, 225 µm, 2400 µm, 2700 µm, 300 µm, 3000 µm, 3300 µm, 3600 µm, 450 µm, 50 µm, 600 µm, 75 µm, 750 µm, 900 µm
Hook length	30 mm
Shaft diameter	0,5 mm, 1,2 mm

Article numbers

D 25 µm, F 50 µm, S 0,5 mm

TOP110025

D 25 µm, F 75 µm, S 0,5 mm

TOP000025

D 50 µm, F 100 µm, S 0,5 mm

TOP110050

D 50 µm, F 150 µm, S 0,5 mm

TOP100050

D 75 µm, F 150 µm, S 0,5 mm

TOP110075

D 75 µm, F 225 µm, S 0,5 mm

TOP100075

D 100 µm, F 200 µm, S 0,5 mm

TOP110100

D 100 µm, F 300 µm, S 0,5 mm

TOP600100

D 150 µm, F 450 µm, S 0,5 mm

TOP600150

D 200 µm, F 600 µm, S 0,5 mm

TOP600200

D 250 µm, F 750 µm, S 0,5 mm

TOP600250

D 300 µm, F 900 µm, S 0,5 mm

TOP600300

D 400 µm, F 1200 µm, S 0,5 mm

TOP600400

D 500 µm, F 1500 µm, S 0,5 mm

TOP600500

D 600 µm, F 1800 µm, S 1,2 mm

TOP600600

D 700 µm, F 2100 µm, S 1,2 mm

TOP600700

D 800 µm, F 2400 µm, S 1,2 mm

TOP600800

D 900 µm, F 2700 µm, S 1,2 mm

TOP600900

D 1000 µm, F 3000 µm, S 1,2 mm

TOP600TOP601000600

D 1100 µm, F 3300 µm, S 1,2 mm

TOP601100

D 1200 µm, F 3600 µm, S 1,2 mm

TOP601200
